Keeps storage neat and clean

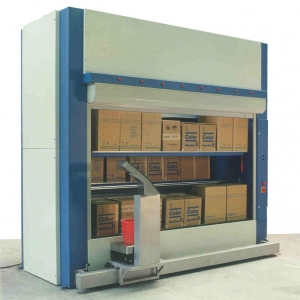

The Paternoster is an efficient rotating storage system for large amounts of products packed both in drums and cartons.
It is a major step forward to efficient handling and routing of chemicals and dyes. A clean and operator-friendly unit requiring a minimum of floorspace.
Features
Options
Technique
The paternoster rotates the shelves to position the required shelf in front of the operator.
Performance
The paternoster can load up to 4000 kg and retrieve any position on any shelf within one minute.
Safe and Clean
The paternoster will keep the drums and cartons organized and away from the production floor.
Technical specifications
| TYPE | PC 48/30 | PC 48/38 | PC 48/50 |
|---|---|---|---|
| Width W (mm) | 4800 | 4800 | 4800 |
| Height H1 (mm) | 3000 | 3800 | 5000 |
| Height H2 (mm) | 2500 + H | 3300 + H | 4500 + H |
| Chainlength L (mm) | 5500 | 7100 | 9500 |
Load specifications
| Maximum load per platform | 450 kg. |
| Maximum total load | 4000 kg. |
| Maximum height of drums (h) | 800 mm. |
| Maximum diameter of drums | 450 mm. |
| Maximum number of platforms | n=L/(h+490) |
